产品特性
- 工业级温度范围，采用抗振动设计
- 引脚及安装尺寸全面兼容STRATOS产品
- 更紧凑的结构设计
- +3.3V单电源
- 具备接收数据信号检测功能 (除FTMF-131X-10Dx-xx,FTMF-151X-80Dx-xx外)
产品应用
MINISFF插拔型系列微型光收发模块适用于高可靠高效的数字光纤通信应用 ; 传输速率可达10Gbps。广泛应用于小型化、紧凑设计的数字光通信系统
订购信息
|
型号 |
波长(nm) |
速率 |
传数距离(Km) |
数字诊断 |
x |
-xx |
|
FTMF-1312-10x-xx |
1310 |
1.25G |
10 |
N |
空:商业级 I:工业级 |
GC:全国产 空：非全国产 |
|
FTMF-1512-H2x-xx |
1550 |
1.25G |
120 |
N |
||
|
FTMF-131X-10Dx-xx |
1310 |
10G |
10 |
Y |
||
|
FTMF-151X-80Dx-xx |
1550 |
10G |
80 |
Y |
||
|
FTMF-Cxx24-40x-xx |
1270～1610(20nm间隔) |
2.5G |
40 |
N |
||
|
FTMF-Cxx62-20x-xx |
1270～1610(20nm间隔) |
6.25G |
20 |
N |
||
|
FTMF-Cxx1X-10x-xx |
1270～1610(20nm间隔) |
10G |
10 |
N |

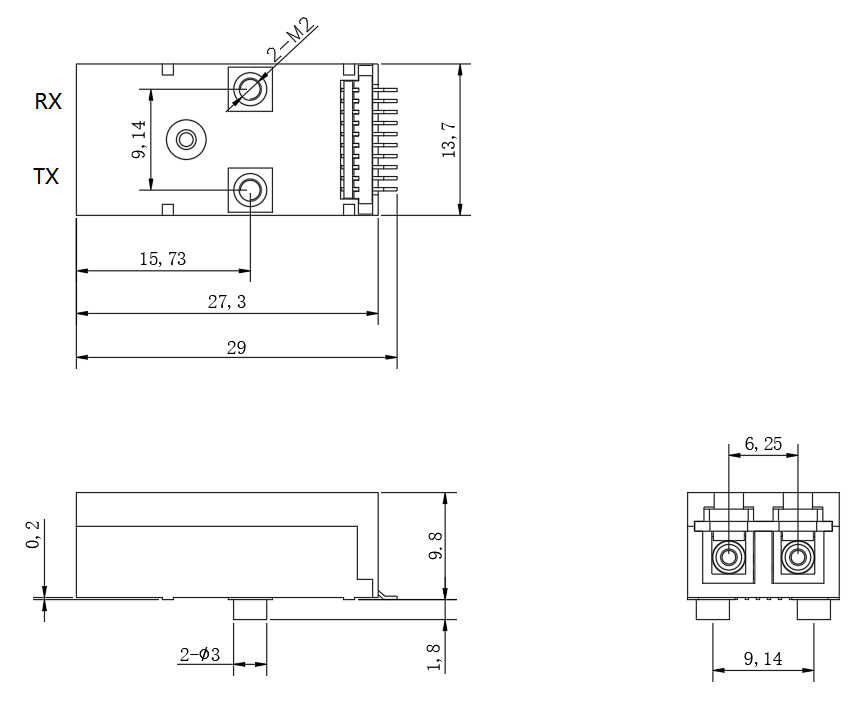

外形尺寸(单位mm)
备注： 未注公差：± 0.25mm
北亿纤通 | F-tone Networks
企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
