Features
● Support Infiniband and Fibre Channel application
● Compliant to QSFP+ Electrical MSA SFF-8436
● Multi rate of up to 14.025Gbps
● +3.3V single power supply
● Low power consumption
● Operating case temp Commercial: 0℃ to +70℃
● RoHS compliant
Applications
● InfiniBand FDR at 56Gb
● 16G Fibre Channel at 14Gb per lane
● Super Computer
● Other optical links
Absolute Maximum Ratings
|
Form Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Supply Voltage |
Vcc3 |
-0.5 |
+3.6 |
V |
||
|
Storage Temperature |
Ts |
-10 |
+70 |
°C |
||
|
Operating Humidity |
TOP |
+5 |
+85 |
% |
1 |
Note: 1 No condensation
Recommended operating Conditions
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Operating Case Temperature |
Tc |
0 |
- |
+70 |
℃ |
|
|
Power Supply Voltage |
Vcc |
3.14 |
3.3 |
3.47 |
V |
|
|
Power Dissipation |
Pd |
- |
- |
1.5 |
W |
|
|
Bit Rate |
BR |
1.25 |
14.025 |
- |
Gbps |
Note: 1 Per terminal
Electrical Characteristics
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Notes |
|
|
ModSelL |
Module Select |
VOL |
0 |
- |
0.8 |
V |
|
|
Module Unselect |
VOH |
2.5 |
- |
Vcc |
V |
||
|
Low Power |
Mode LPMode |
VIL |
0 |
- |
0.8 |
V |
|
|
Normal Operation |
VIH |
2.5 |
- |
Vcc+0.3 |
V |
||
|
ResetL |
Reset |
VIL |
0 |
- |
0.8 |
V |
|
|
Normal Operation |
VIH |
2.5 |
- |
Vcc+0.3 |
V |
||
|
ModPrsL |
Normal Operation |
VOL |
0 |
- |
0.4 |
V |
|
|
IntL |
Interrupt |
VOL |
0 |
- |
0.4 |
V |
|
|
Normal Operation |
VOH |
2.4 |
- |
Vcc |
V |
||
|
Electrical transmitter Characteristics |
|||||||
|
Differential Data Input Swing |
Vout |
200 |
- |
1600 |
mV |
||
|
Input Differential Impedance |
ZD |
90 |
100 |
110 |
Ω |
||
|
Electrical Receiver Characteristics |
|||||||
|
Differential Date Output Swing |
Vin,p-p |
350 |
- |
800 |
mVpp |
||
|
Output Differential Impedance |
BER |
E-12 |
1 |
||||
|
Input Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
||
Note: 1 PRBS2^该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。

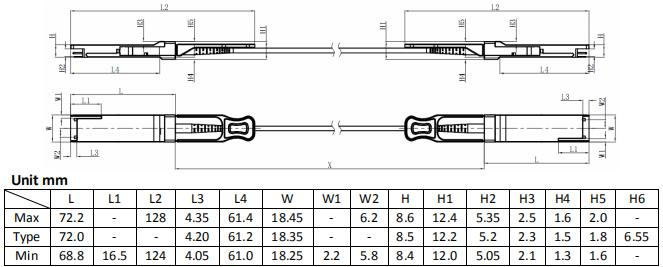

Mechanical
Ordering Information
|
Part No. |
Bit Rate (Gbps) |
Laser (nm) |
Distance |
Fiber Type |
Connector |
Temp |
|
FT-77-AOC-Q3Q3-xxx |
56.1 |
850 |
0.5~150m |
MMF |
N/A |
0℃~+70℃ |
Note: 1 Case Temperature
