Description

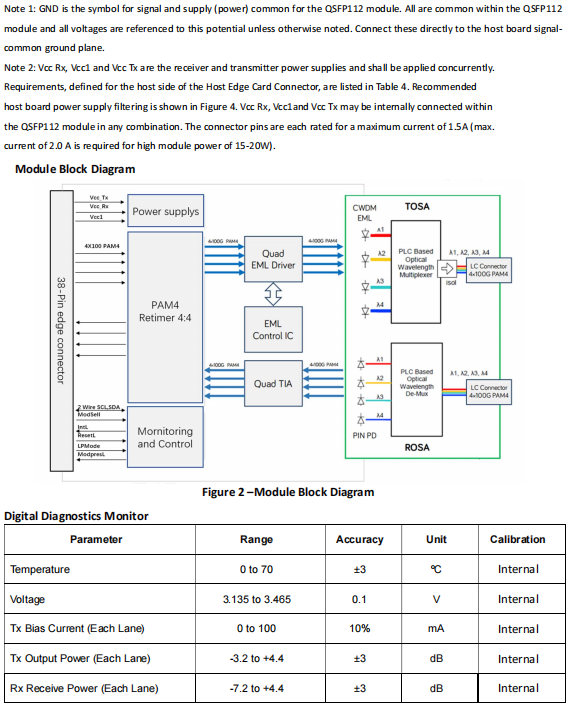

This product is a 400Gb/s QSFP112 optical module designed for 2km optical communication applications. The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals and converts them to 4 channels of 100Gb/s (PAM4) electrical output data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm. Host FEC is required to support up to 2km fiber transmission.

Features
● Compliant with QSFP112 MSA V2.0
● 4 CWDM lanes MUX/DEMUX design
● Supports 425Gb/s aggregate bit rate
● 100G Lambda MSA 400G-FR4 Specification compliant
● 4x100G PAM4 EML-based CWDM transmitter
● 4x100G PAM4 retimed 400GAUI-4 electrical interface
● Duplex LC Receptacle
● Compliant with CMIS Rev 5.0
● Operating distance at engineering link of up to 2km
● Maximum power consumption 10 W
● Case operating temperature 0°C to 70°C
● Class 1 Laser
● RoHS 2.0 complaint

北亿纤通 | F-tone Networks

企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
