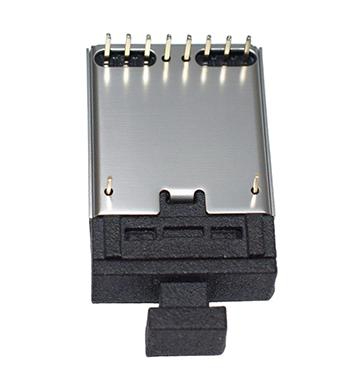

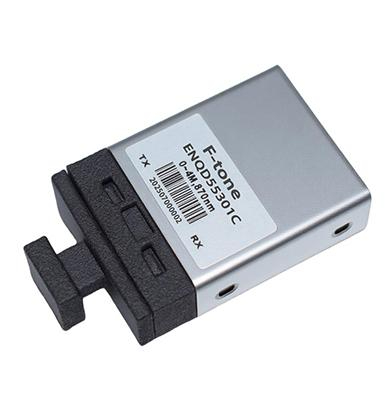

Product Description
F-tone’s ENQD55301C series of transceiver modules are the perfect solution for ultra-low speed communication networks. These transceiver modules support data rates DC to 4Mbps.

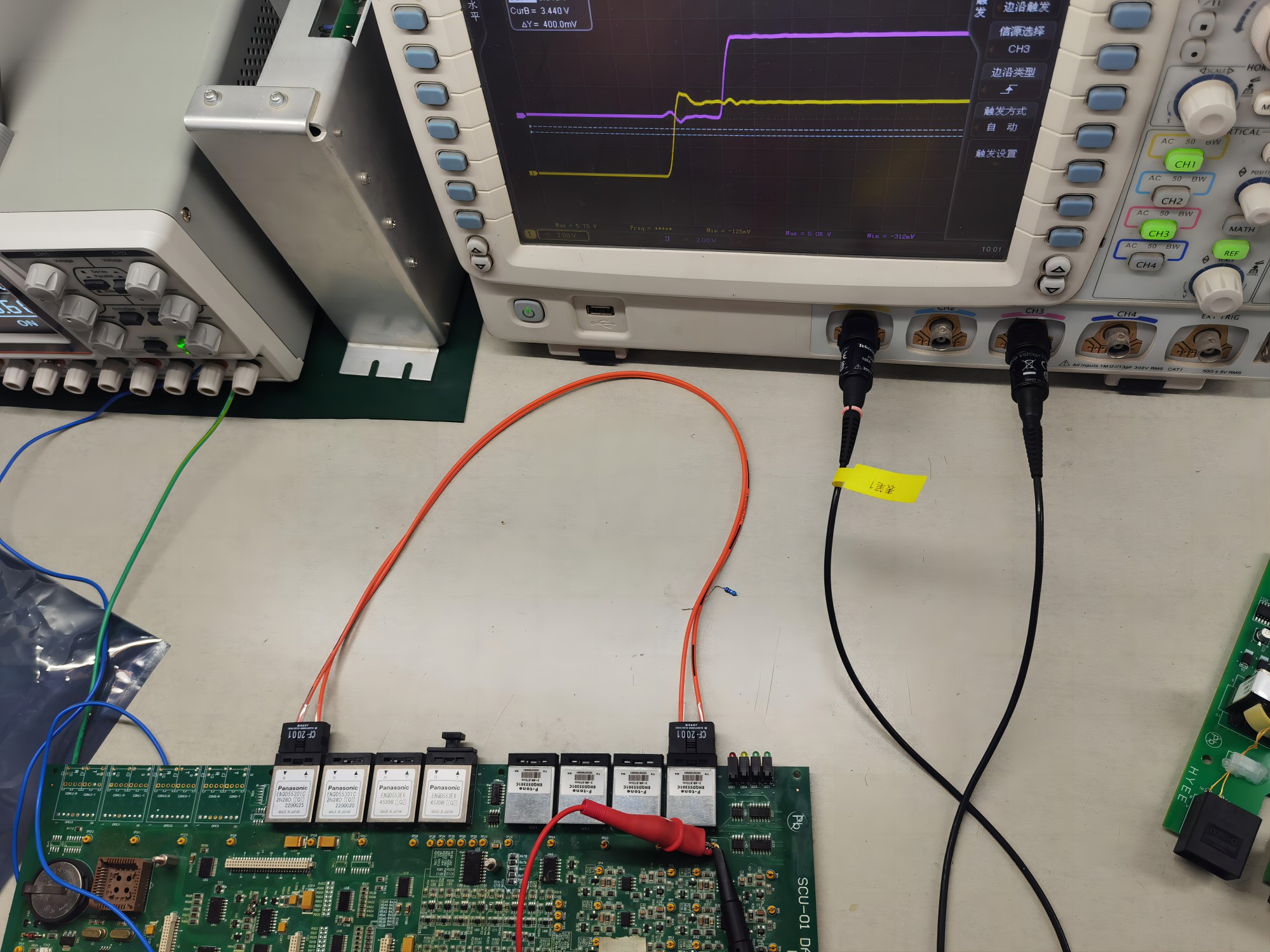

Performance metrics
|
project |
parameter |
Test conditions |
|
|
Power Supply Voltage |
-0.5~7V |
||
|
Operating voltage |
5.0±0.25V |
||
|
Operating current |
Transmitter:Max30mA |
VCC=5V(DC) |
|
|
Receiver:Max50mA |
|||
|
Transfer rate |
DC~4Mbpse |
NRZ/encode |
|
|
Average Optical Power |
-10~-18dBm |
VCC=5V(DC) |
|
|
Center Wavelength |
870nm |
||
|
Input voltage |
Hi level |
MIN:2.4V |
VCC=4.75V(DC) |
|
Lo level |
MAX:0.4V |
VCC=5.25V(DC) |
|
|
Input current |
Hi level |
MAX:80uA |
VCC=4.75V(DC) VIH=2.45V |
|
Lo level |
MIN:-3.2mA |
VCC=5.25V(DC) VIL=0.4V |
|
|
Transmission delay |
MAX:300ns |
4Mbps duty25~75% |
|
|
Rising delay |
MAX:70ns |
4Mbps duty25~75% |
|
|
Drop delay |
MAX:30ns |
4Mbps duty25~75% |
|
|
Receiver output current |
MAX:160uA |
VCC=4.75V(DC) VOH=3.0V |
|
|
MIN:-1.6mA |
VCC=5.25V(DC) V0H=0.5V |
||
|
insulation |
MIN:8500V |
||

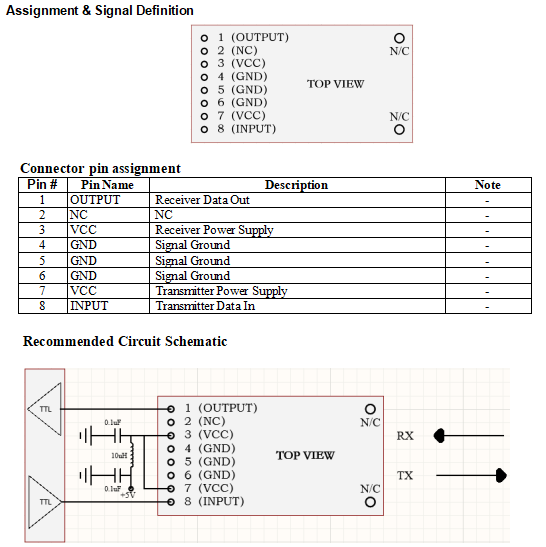

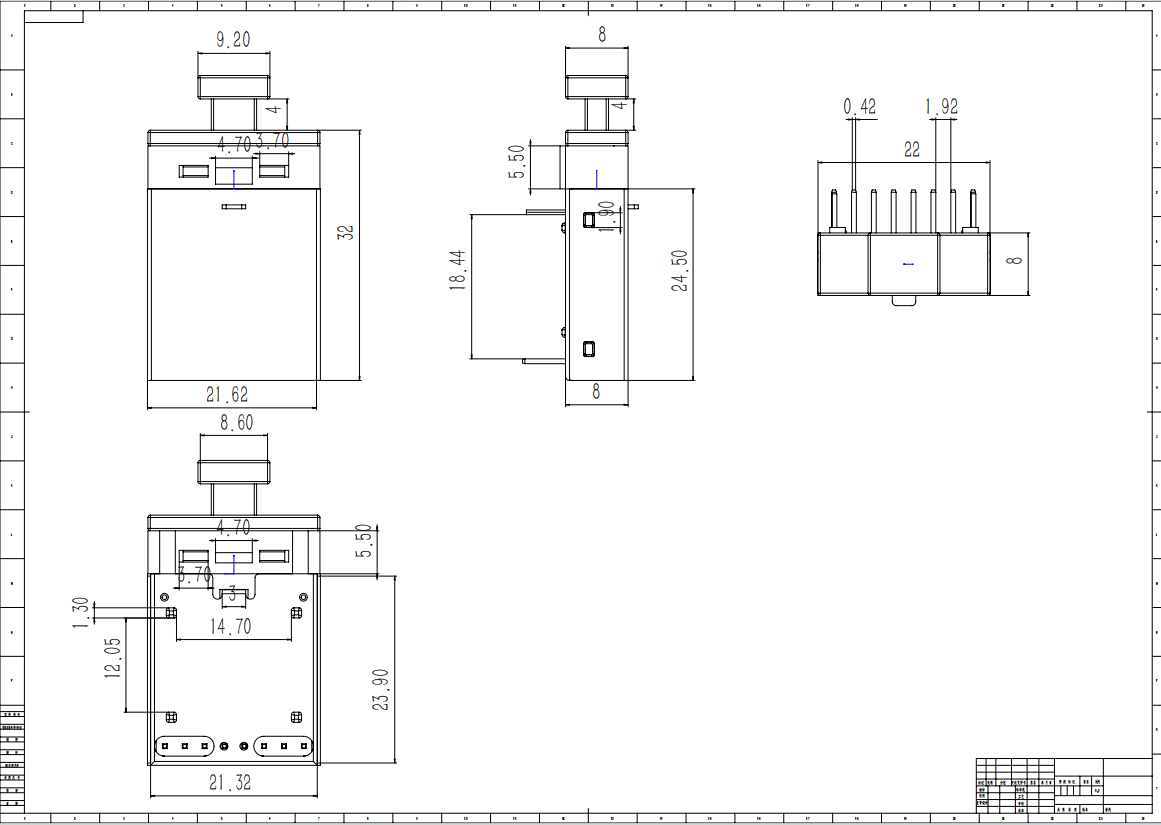

Module Outline Drawing
